DESCRIPTION

Easy to set up and use: just move it!

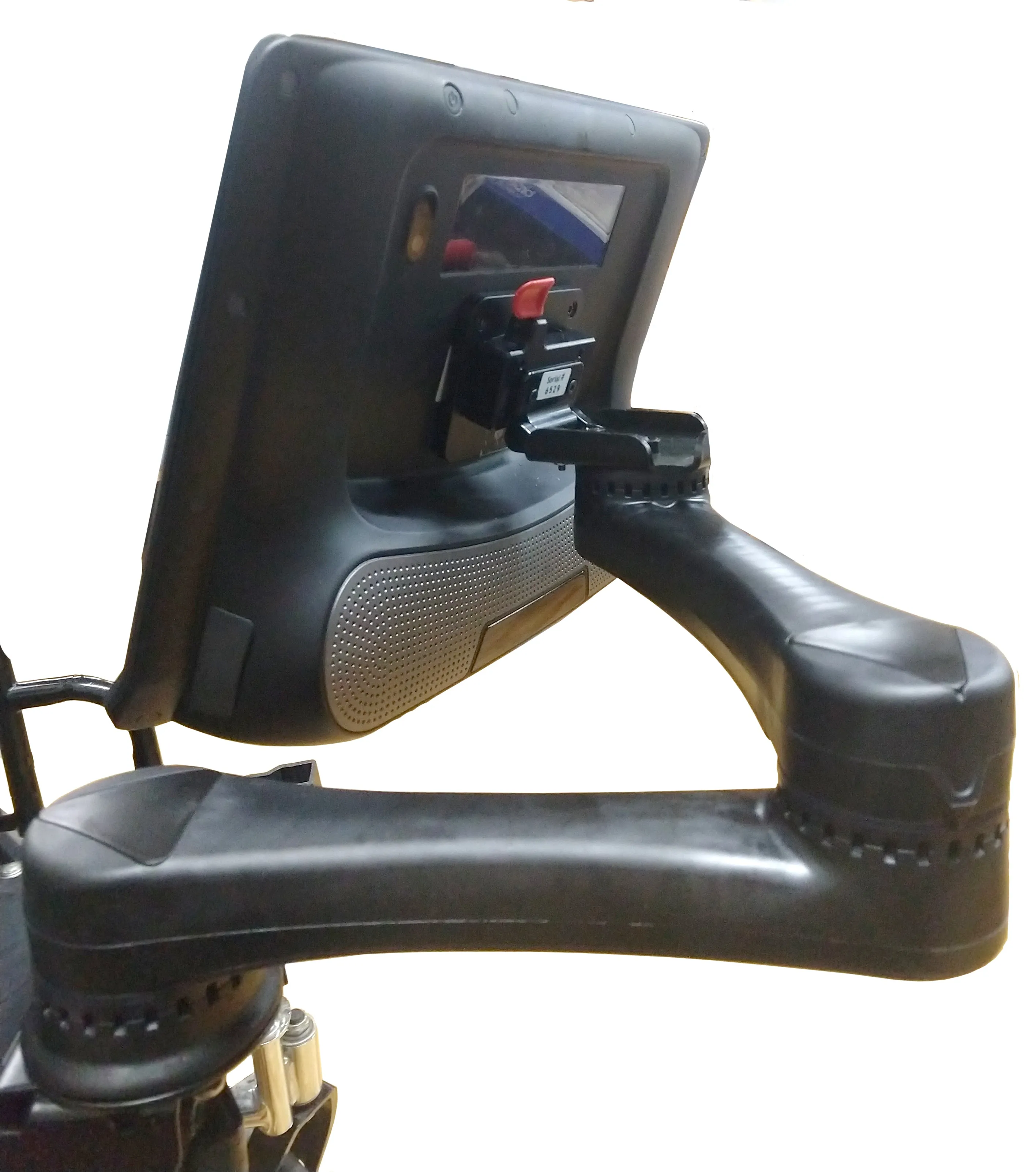

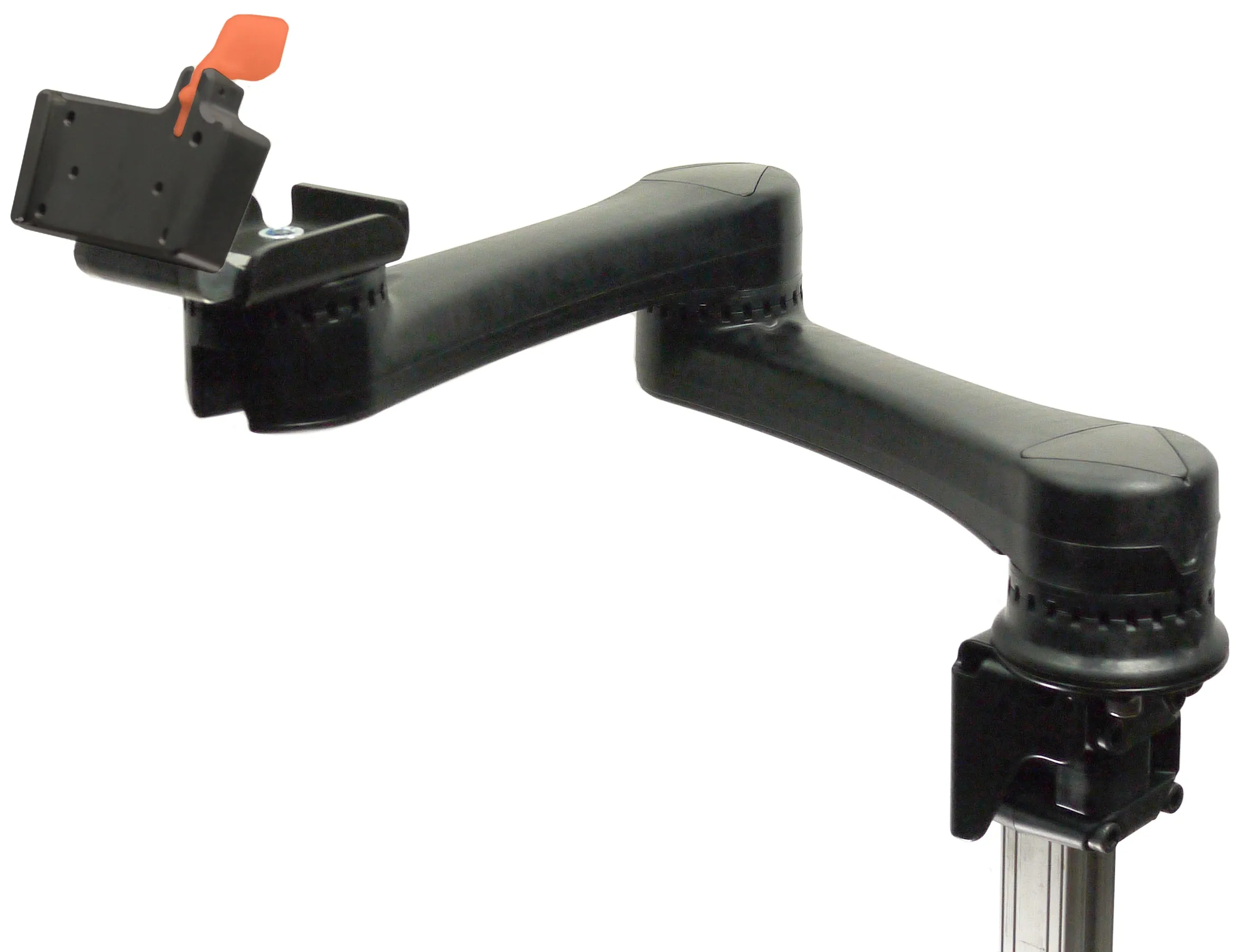

• Movable mount for speech devices, trays, cameras, and more!
• Easy and intuitive to use--just move it!
• 3 movable joints (shoulder, elbow, wrist)

Joint resistance

• Joints can be adjusted from low to high resistance, making it easier or harder to move

New Quick Connect Receiver is compatible with:

• Built-in features and plates on many speech devices
• Mount'n Mover trays and device plates using Quick Connect Plate

Tilt functions/features

• Adjust tilt from 0-180 degrees
• Tilt hinge on Quick Connect Receiver is available with either low or high resistance

Compare to original Mount'n Mover

• Same reach
• Lower price
• Sleek design, without hoop and paddle
• Easier to use out of the box
• Tilt and arm joints do not lock
• Same load capacity: 15 pounds

Recommendation considerations:

• Keep in mind that the tilt angle does not lock
• You may not want to use the Easy Mover for a heavy device if:
  • the person has a heavy device and uses their device with their wheelchair tilted; or
  • the person uses an eye gaze device, the device tilts downward, and they drive in this position

SPECIFICATIONS

To use:

1. Attach the wheelchair hardware
2. Insert the post
3. Attach the Easy Mover's Link cube to the post
4. Move the Easy Mover

If you want to change the resistance to moving it

• Use the 3/16" hex key with the ball joint
• Experiment with tightening or loosening the joints
• Have the person try it out--can they move it? do you want them to move it?
• Adjust it so it works for the person

Considerations:

• Choose a High or Low resistance hinge at the time of order
• The Tilt cannot be locked in place
• If the person is going to tilt in their wheelchair while using the device, you may need to increase the joint resistance

Technical Specifications

Dimensions

• Height: 6.5 inches (163.9mm)
• Width: 3 inches (76.2 mm)
• Length: 21.0 inches (532.2mm)
• Weight: 2 pounds 15 oz.

Material(s)

• Engineering Plastics (same as Gen 2 Mount'n Mover)
• Aircraft Aluminum
• Steel

What's in the box?

• Dual Arm Easy Mover
  • Quick Connect Receiver (attached)
• Tools:
  • 3/16" T-handle Hex Key with ball end
• Materials
  • Easy Mover Instructions
  • Mount'n Mover Quick Guide (for wheelchair attachment reference)
  • Warranty registration card
