RAM Universal Laptop Tough-Tray™ Cradle :

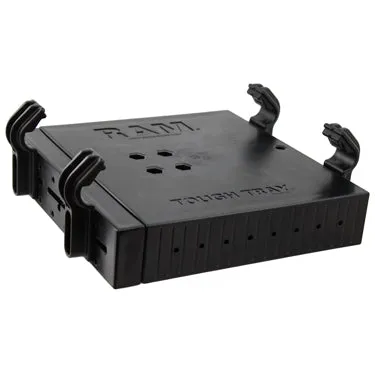

The RAM Tough-Tray™ is a spring-loaded expandable tray that can accommodate 10 to 16 inch wide laptops. The tray includes four side clamping arms with rubber grips to keep your laptop secure in any rugged environment. These arms can be moved both vertically and horizontally, allowing a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on the perimeter of the tray facilitate the mounting of additional RAM systems to support GPS, PDAs, or other electronics.
HARDWARE INCLUDED
- Qty (4): #10-24 x 22.2mm (7/8)" Machine Screws
- Qty (4): #10-24 Thin Nylock Nuts
Tough-Tray™ Dimensions:
- Tray Depth: 254mm (10.0")
- Tray Thickness: 53.9mm (2.125")
- Tray Width (Expansion): 254mm to 406.4mm (10" to 16")
- Side Clamp Arm Height: 12.7mm (0.5") (min) to 44.4mm (1.75") (max)
HOLE PATTERN
- 4-Hole AMPS: 29.9mm x 37.9mm (1.181" x 1.496")
Material:
- High Strength Composite
Note:
Part number reflects product packaged in a clear clamshell for store shelf display. The Tough-Tray™ is compatible with laptops that have 431.8mm (17") screens.
Compatible Device : 254mm (10") to 406.4mm (16") Wide Laptops & 431.8mm (17") Wide Screens
