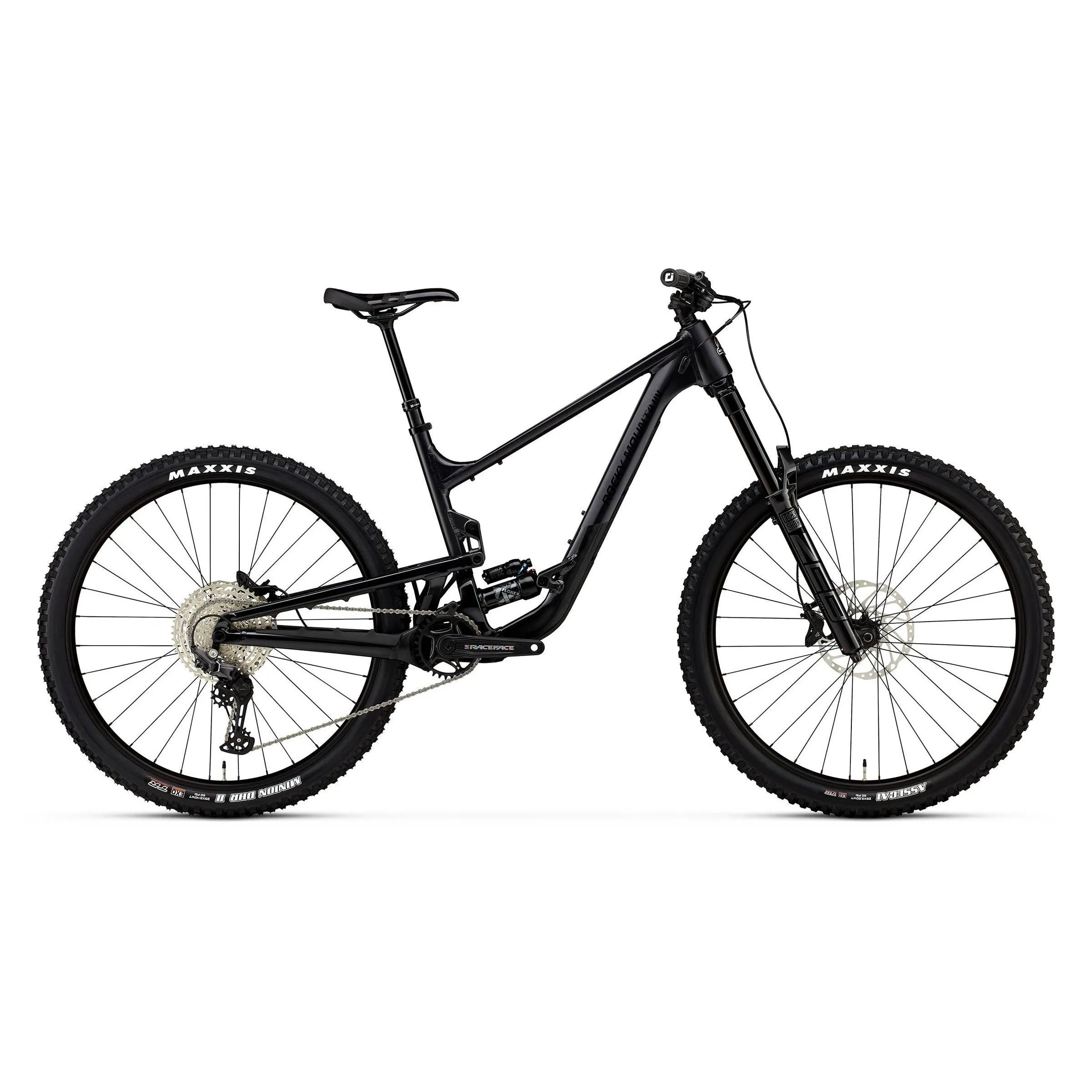

From commanding the clock to holding your own on weekend rides. The Altitude Alloy is purpose-built to go fast and demolish steep trails. Its total enduro capabilities can help you secure that “top step” and tackle demanding group rides with confidence. The Altitude Alloy features internal routing, size-specific tune, and the refined RIDE-4™ adjustment system. With so much capability in your corner, it’s time to push limits, climb faster, and charge.

Intended use: Enduro

Rear travel: 160

• Frame: FORM™ Alloy | Full Sealed Cartridge Bearings | BSA Bottom Bracket | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 160mm Travel. FORM™ Alloy Rear Triangle

• Fork: RockShox Zeb Select RC 170mm | 27.5 = 38mm Offset | 29 = 44mm Offset

• Front Travel: 170

• Shock: Fox Float X Performance | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ

• Rear Travel: 160

• Headset: FSA ZS56|66 Reach Adjust| 0mm Cups Installed | /- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race

• Stem: Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm

• Handlebar: Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp

• Grips: ODI Elite Pro Lock On

• Brakes: Shimano MT6120 4 Piston | Metal Pads

• Shifters: Shimano Deore 12spd

• Rear Derailleur: Shimano Deore 12spd

• Cranks & Chainring: Race Face Ride Cinch | 32T | 24mm Spindle | Crankarm Length: SM = 165mm | MD - XL = 170mm

• Bottom Bracket: Shimano Threaded BBMT501-B

• Cassette: Shimano Deore 10-51T 12spd

• Chain: Shimano M6100

• Front Hub: Shimano TC500 | 15x110m

• Rear Hub: Shimano TC500 Boost 148mm

• Spokes: 2.0 Stainless

• Rims: WTB ST i30 TCS 2.0 Tubeless | 32H / Tubeless Ready - Tape / Valves Incl

• Tires: F: Maxxis Minion Assegai 2.5 WT EXO Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready //

• Seatpost: X Fusion Manic Composite 30.9mm | SM = 150mm | MD = 170mm | LG - XL = 200mm

• Saddle: WTB Volt 142

• Weight: 38.016|17.28 KGS
