ThermaData Pharm WiFi loggers for vaccines, medicines and the pharmaceutical industry
- FREE software with NO ongoing or subscription charges
- access recorded data worldwide via internet
- high/low alerts via email & SMS
- FREE traceable calibration certificate
- UKAS certificates available
ThermaData Pharm WiFi data loggers are a battery powered, cost effective, temperature monitoring system that remotely records storage and transportation temperatures of perishable items such as vaccine, medicines and perishable foodstuffs.
The ThermaData Pharm is available in two options, the TD1F-PHM with one internal and one external sensor or the TD2F-PHM that has two external sensors.

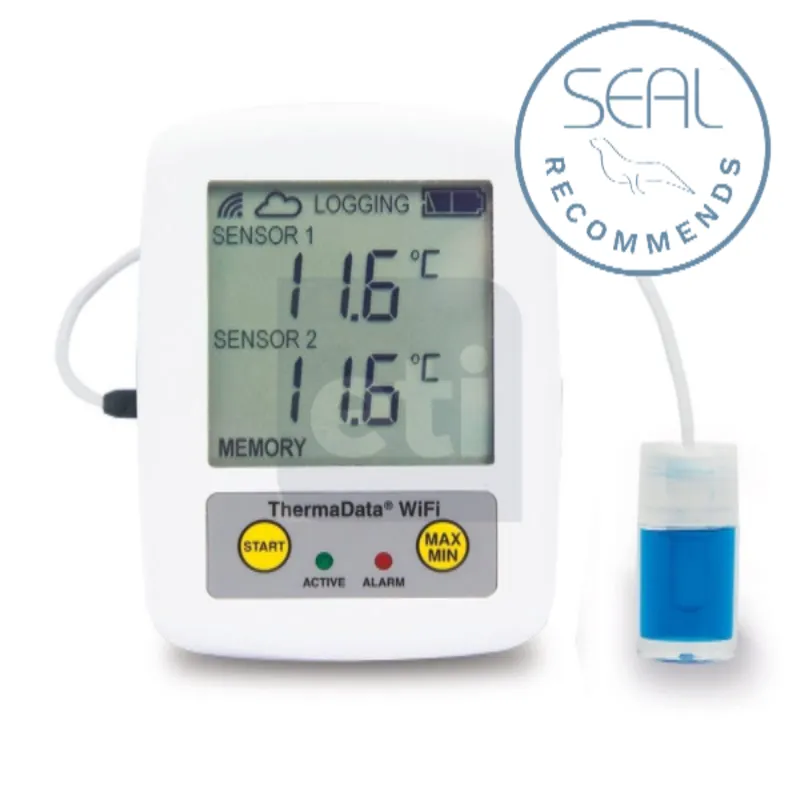

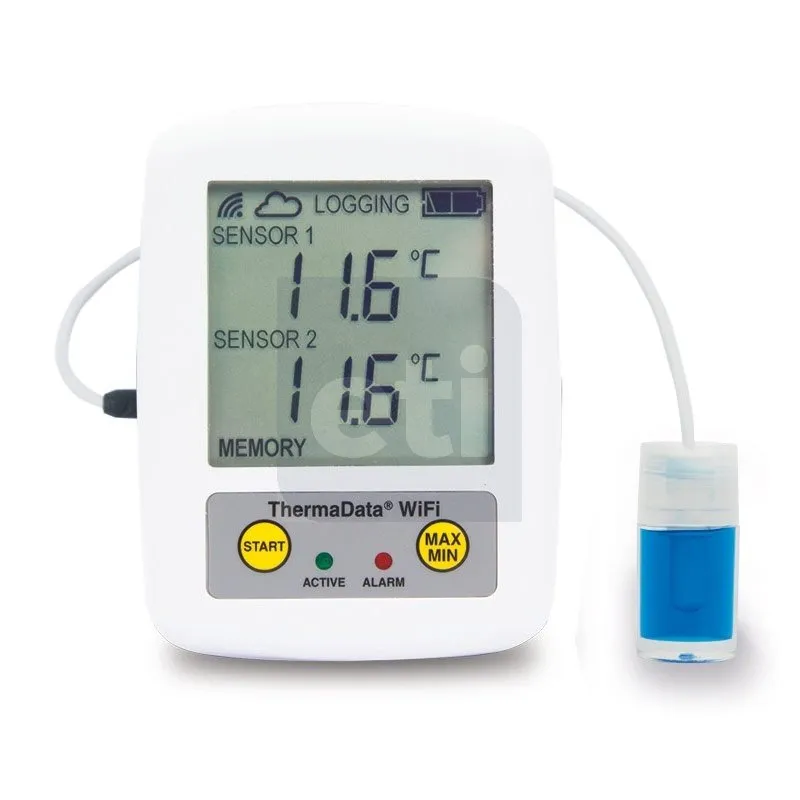

Each unit has an intuitive LCD displaying; temperature, WiFi connection status, max/min recorded temperatures, alarm status and battery life.
Simple to set up, the logger once up and running will transmit recorded data to a WiFi router connected to the internet which can then be accessed and viewed from a PC, laptop or tablet anywhere in the world.
At programmable intervals, the loggers will record temperature from both sensors, recording up to a maximum of 18000 readings (9000 from each sensor). Each logger incorporates a red and green LED. The flashing green LED indicates that the logger is active/logging and the flashing red LED indicates that the customised preset alarms have been exceeded. Each logger communicates directly to the WiFi router at set intervals to push data through the internet into ThermaData Studio. The information is available to be analysed and exported into a report format. Each unit is supplied with a USB lead, wall bracket and FREE ThermaData Studio software (licence free)
available to download from our website.
Each thermistor probe is encased in a sealed bottle and incorporates a two metre PUR/PVC fixed lead. To begin monitoring, simply unscrew and top up with Glycol solution (50ml bottle supplied). Please Note: Model TD1F is supplied with one external remote probe and an internal sensor. Model TD2F is supplied with two external remote probes. For more information contact our sales office.

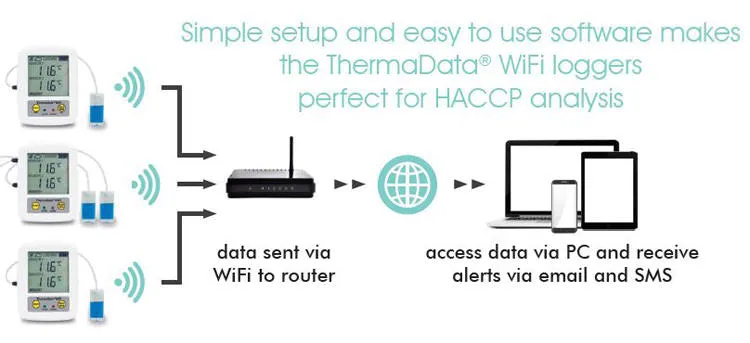

How does the ThermaData Pharm WiFi logger work?
Using the unique ID of each logger ThermaData Studio creates a secure connection between logger and software which can be accessed and viewed anytime and anywhere with an internet connection.
Each logger communicates directly to the WiFi router at set intervals to push data through the internet intoThermaData Studio.
The information is available to be analysed and exported into a report format.
ThermaData Studio Software
Both powerful and sophisticated, yet user-friendly, the ThermaData Studio software enables temperature data to be organised and analysed to provide management information.
The ThermaData Studio software has the ability to display up to 32 traces on a graph, the trace colours are user selectable. All files can be viewed as thumbnail icons for easy identification.
The software allows the user to programme the logging sample/interval rate (0.1 to 330 minutes), communication interval (sync) with PC, real-time clock, °C or °F and a manual start option. It is also possible to include a user ID for each logger.
2 Week Lead-time on all orders
